Voltage-drop adaptor for VM600 IOC4T card
- 4 individually configurable channels for use with IOC4T dynamic channel and tachometer channel inputs
- Reduces a channel’s sensor power supply output voltage
- −27 V input to −24 V output, −27 V input to −18 V output or straight-through connection per channel
- Reduces external circuitry and wiring when IOC4T sensor power supply outputs are connected to third-party front ends
Description

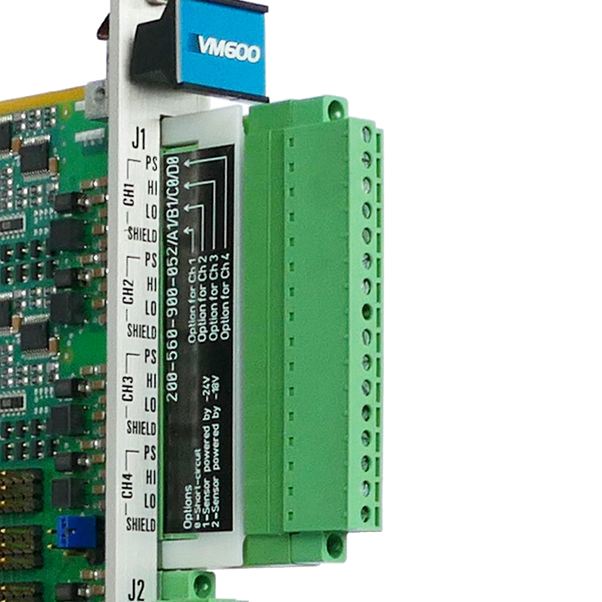

High-quality, high-reliability voltage-drop adaptor for the MPC4/IOC4T card pairs used by VM600 rack-based machinery monitoring systems. The IOC4T voltage-drop adaptor supports 4 channels, which can be dynamic channels or tachometer (speed) channels. An IOC4T voltage-drop adaptor is installed into a screw-terminal socket (J1 or J2) of an IOC4T card in the rear of a VM600 ABE04x rack.
Features
- 4 individually configurable channels for use with IOC4T dynamic channel and tachometer channel inputs
- Reduces a channel’s sensor power supply output voltage
- −27 V input to −24 V output, −27 V input to −18 V output or straight-through connection per channel
- Reduces external circuitry and wiring when IOC4T sensor power supply outputs are connected to third-party front ends
Additional information
| Monitoring system (application) | Machinery protection |
|---|---|
| VM600 system function | Accessory |
| VM600 system component | Interface adaptor |
| VM600 component function | Signal interface |
The following downloads are available for this product:
