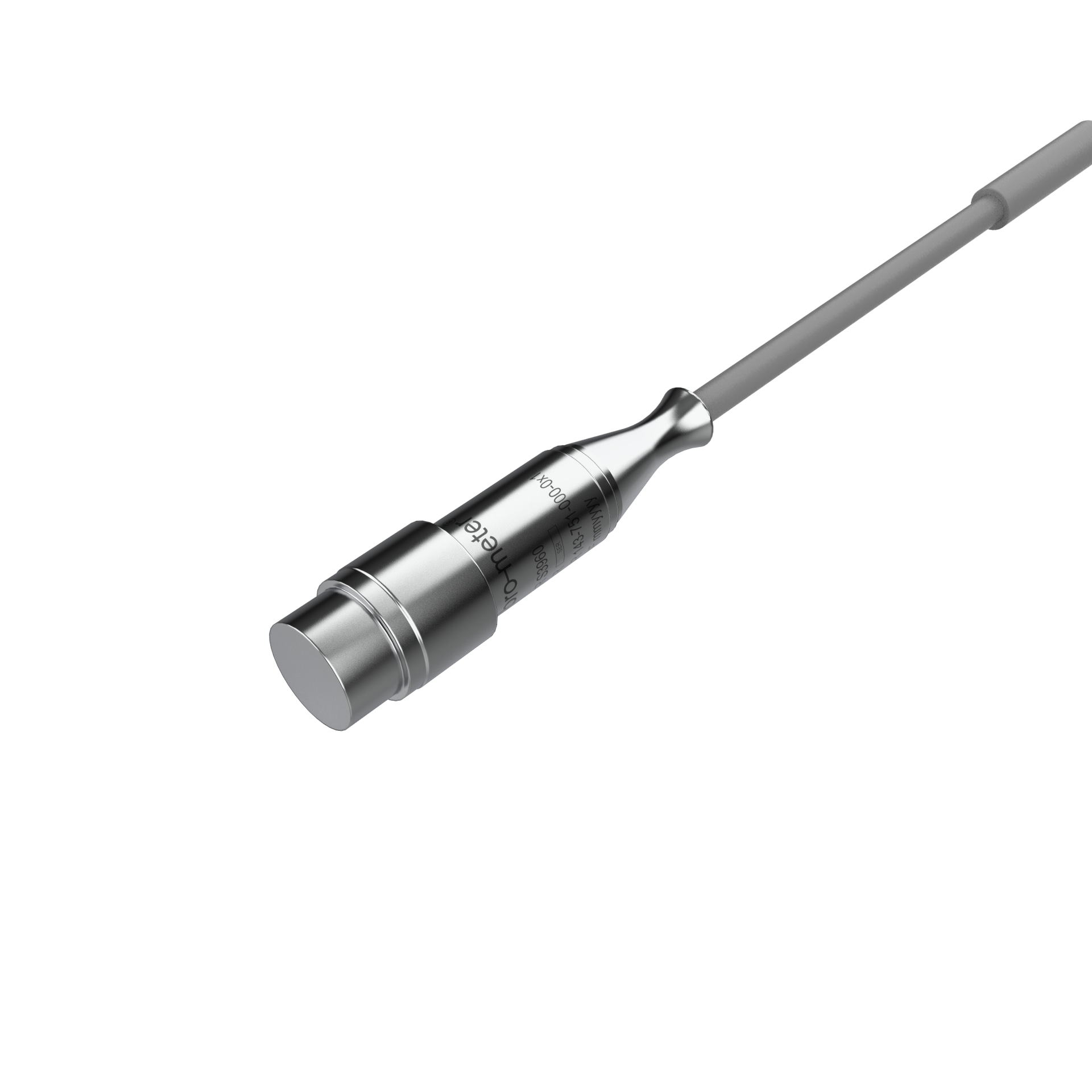

CP751 dynamic pressure sensor
- Designed for the long-term measurement of pressure pulsation in extreme environments, such as gas turbine combustors.
- Very high operating temperature: up to 700 °C.
- Very high frequency response: up to 10000 Hz.
- High sensitivity: >120 pC/bar.

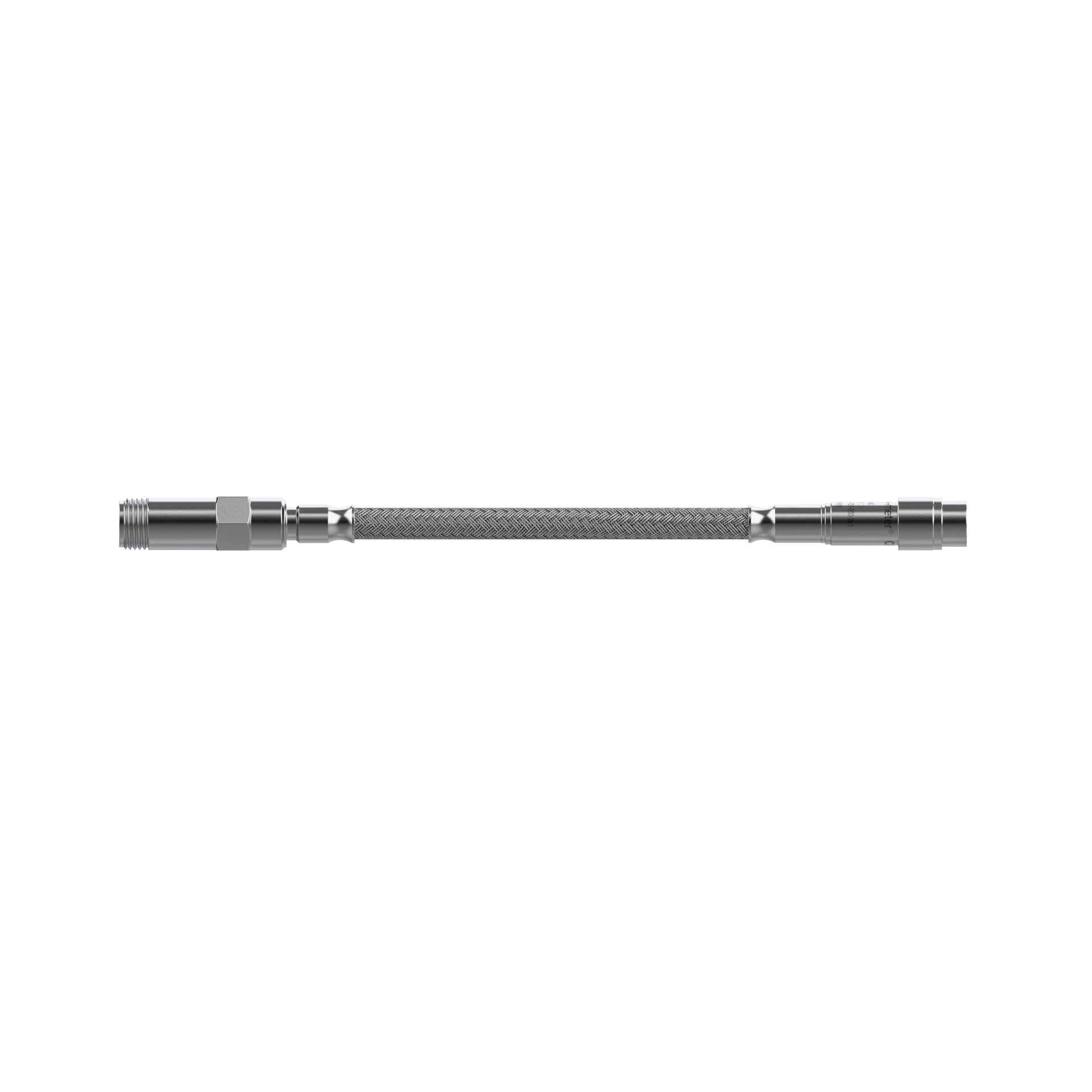

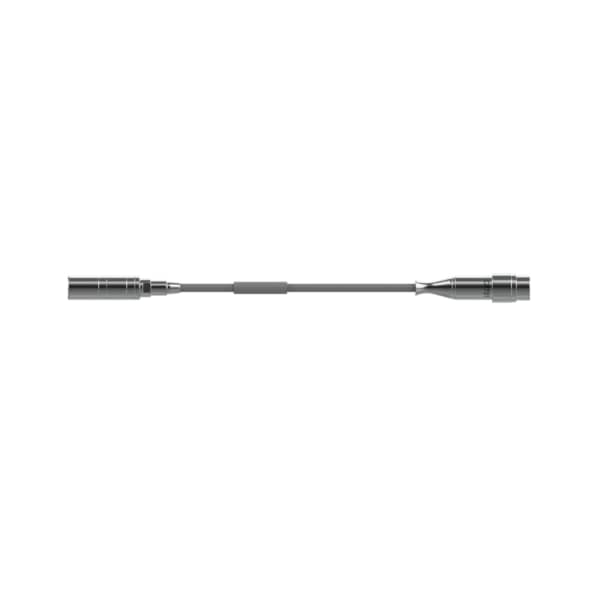

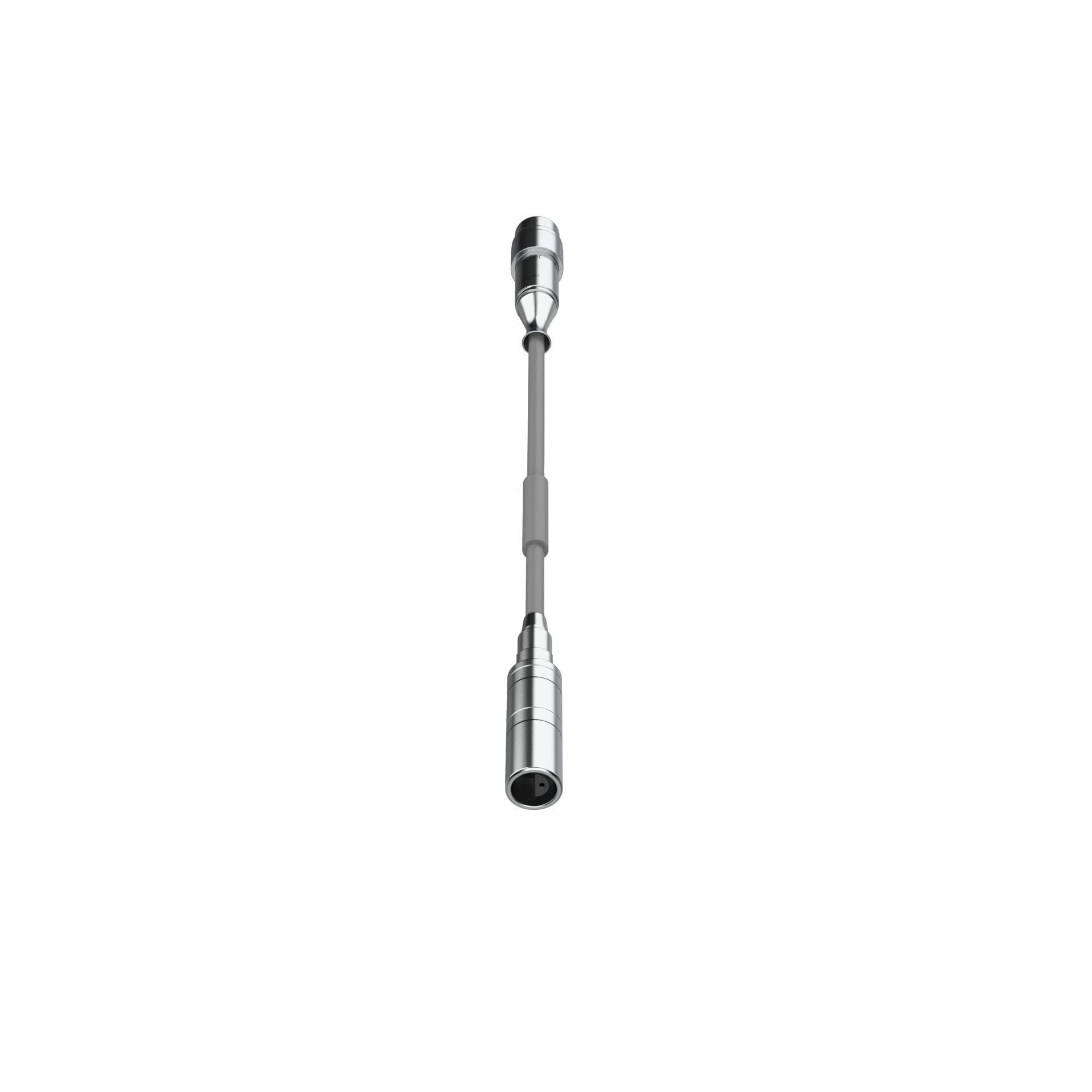

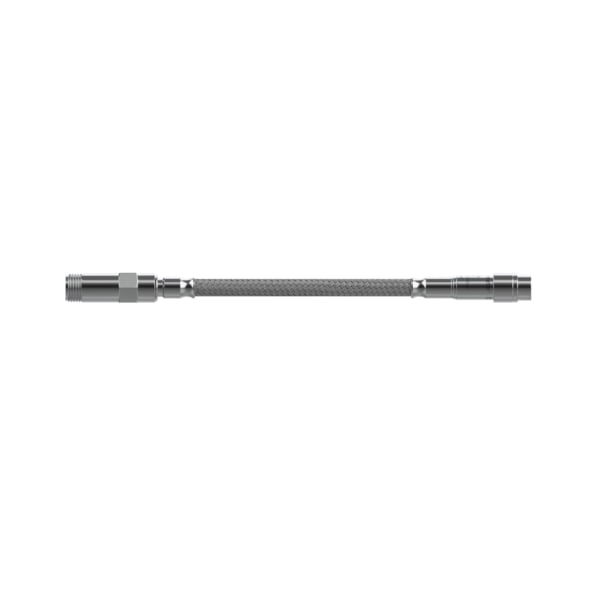

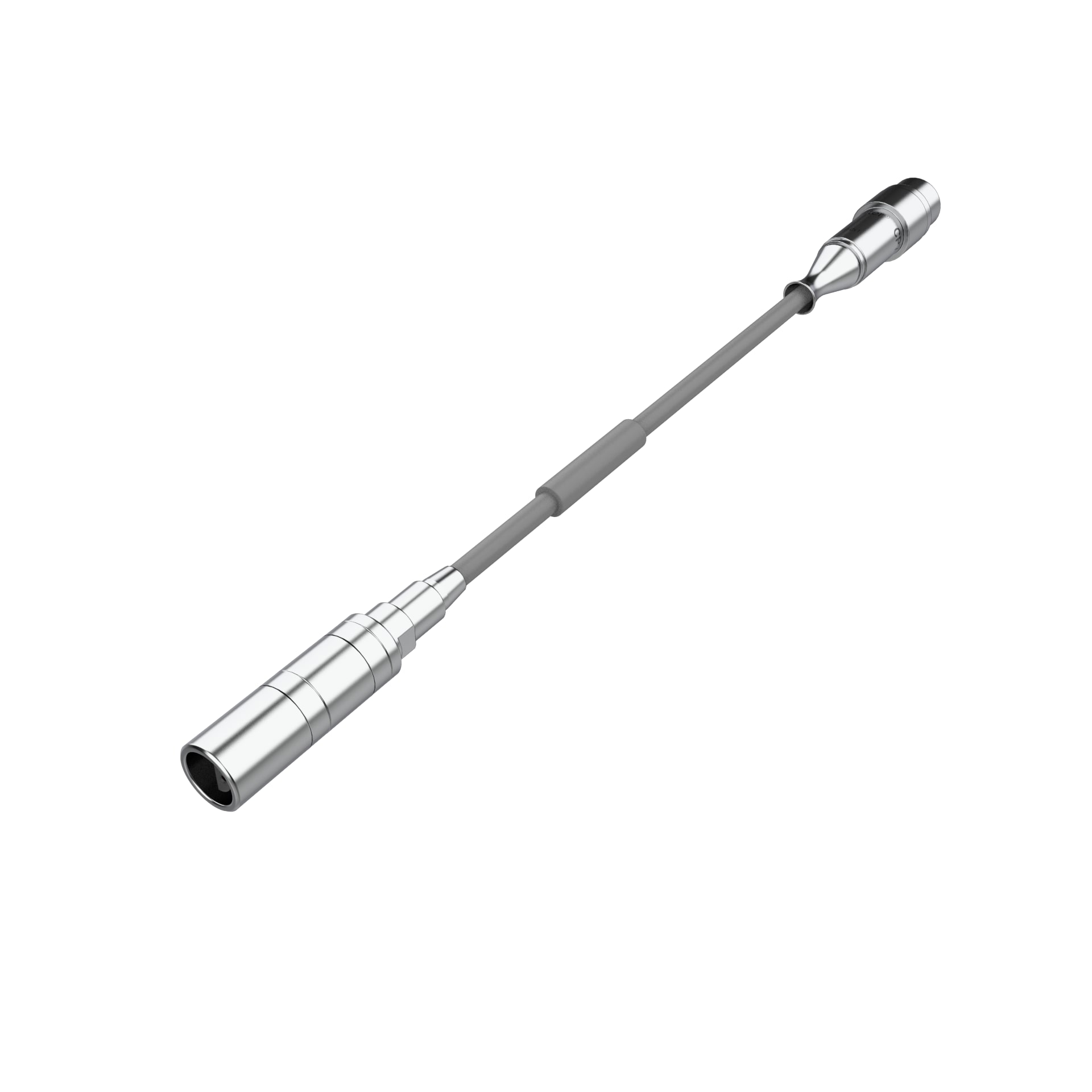

- Available in different integral mineral-insulated (MI) cable lengths, terminated with either a high-temperature connector or a LEMO connector.
- Certified for use in potentially explosive atmospheres (Ex).
Description
>120 pC/bar, −40 to 700 °C, 2 to 10000 Hz.
The CP751 dynamic pressure sensor (piezoelectric pressure sensor) is a high-quality, high-reliability dynamic pressure sensor with a piezoelectric sensing element that provides a charge output. Accordingly, an external charge amplifier (IPC707 signal conditioner), is required to convert this charge-based signal into a current or a voltage signal.
The CP751 is designed and built for long-term use in extreme environments characterised by high temperatures and/or hazardous areas (potentially explosive atmospheres).
Features
- Designed for the long-term measurement of pressure pulsation in extreme environments, such as gas turbine combustors.
- Very high operating temperature: up to 700 °C.
- Very high frequency response: up to 10000 Hz.
- High sensitivity: >120 pC/bar.
- Available in different integral mineral-insulated (MI) cable lengths, terminated with either a high-temperature connector or a LEMO connector.
- Certified for use in potentially explosive atmospheres (Ex).
Additional information
Output type | Charge (2-wire) |
---|---|
Sensitivity | 9.4 pC/psi | 137 pC/bar nominal ±10% |
Operating temperature range | −40 to 1292 °F | −40 to 700 °C |
Frequency response | Up to 10000 Hz |
Sensitivity deviation | –2 to 12% over operating temperature range (see response curve in data sheet) |
Dynamic measurement range | 0.0073 to 725.2 psi | 0.0005 to 50 bar |
Overload capacity | Up to 5076 psi | Up to 350 bar |
Linearity | ±1% |
Acceleration sensitivity | ≤0.0029 psi/g | ≤0.002 bar/g (axial direction) and ≤0.0044 psi/g | ≤0.003 bar/g (all directions) |
Resonant frequency | >50 kHz |
Hazardous area certifications | Ex ia, Ex nA |
The following downloads are available for this product:
- CP751 dynamic pressure sensor (piezoelectric pressure sensor) data sheet
- LCIE 17 ATEX 1004 X Ex certificate (Europe) – CP7xx
- LCIE 17 ATEX 3003 X Ex certificate (Europe) – CP7xx
- IECEx LCIE 16.0054X Ex certificate (International) – CP7xx
- cCSAus 70124133 Ex certificate (North America) – CP7xx
- EAЭC RU C-CH.AД07.B.03025/21 Ex certificate (Russian Federation) – CP7xx
- 143-751-000D0xx product drawing [ LOGIN required ]
- 143-751-000D1xx product drawing [ LOGIN required ]
- 143-751-000D2xx product drawing [ LOGIN required ]
- Pressure measurement chains using CPxxx piezoelectric pressure sensors installation manual [ LOGIN required ]
