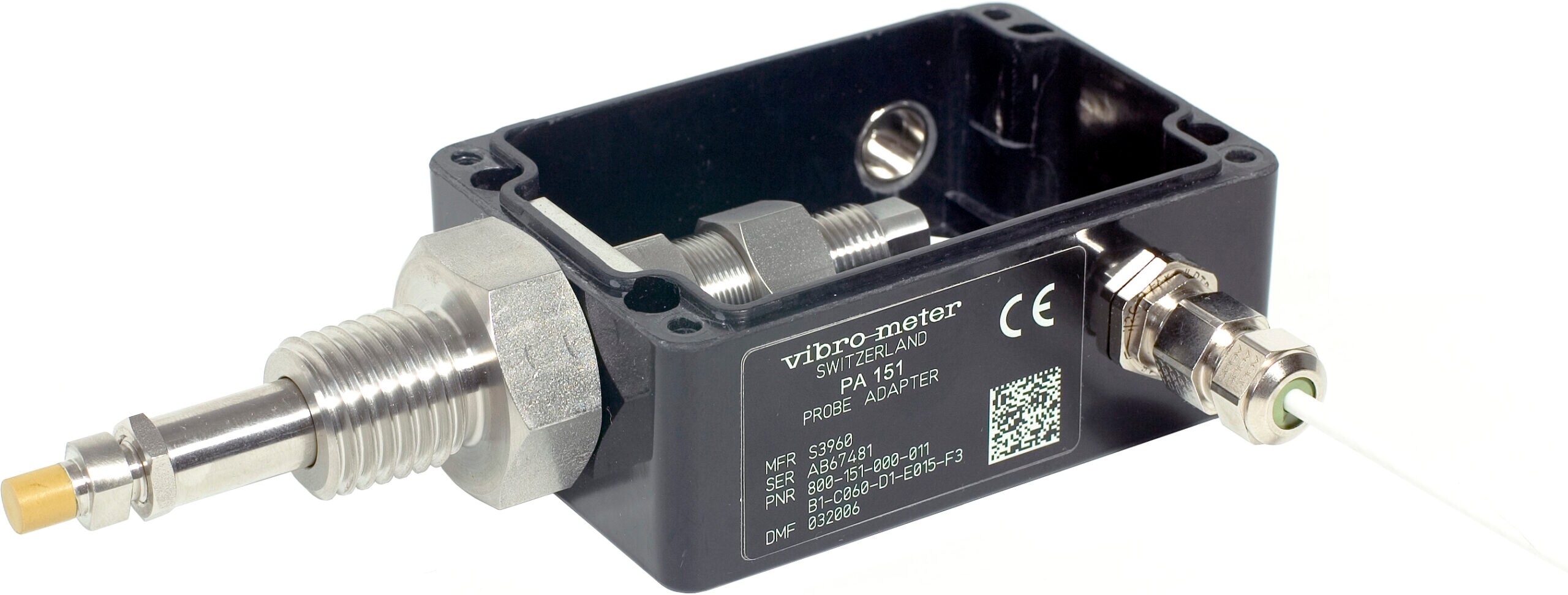

PA151 probe mounting adaptor
- Removable probe housing and probe adaptor rod to support the external mounting of a TQ912 proximity sensor
- Sealed die-cast polyester housing and stainless steel adaptor rod
- Easier probe installation and gap adjustment with adaptor rod lengths from 50 to 800 mm (mounting position adjustable to ±10 mm)
- −40 to 100 °C temperature, IP65 protection rating
- Certified for use in potentially explosive atmospheres
Description
Removable probe housing and probe adaptor rod.
High-quality, high-reliability removable probe housing and probe adaptor rod to support the external mounting of a TQ912 proximity sensor.
The PA151 is designed and built for long-term use in harsh environments characterised by industrial temperatures and/or hazardous areas (potentially explosive atmospheres).
Features
- Removable probe housing and probe adaptor rod to support the external mounting of a TQ912 proximity sensor
- Sealed die-cast polyester housing and stainless steel adaptor rod
- Easier probe installation and gap adjustment with adaptor rod lengths from 50 to 800 mm (mounting position adjustable to ±10 mm)
- −40 to 100 °C temperature, IP65 protection rating
- Certified for use in potentially explosive atmospheres
Additional information
Type of probe mounting adaptor | Removable probe housing and probe adaptor rod |
---|---|
Mounting position adjustment | ±0.39 in | ±10 mm |
Probe housing material | Glass-fibre reinforced polyester |
Probe housing gasket material | Neoprene |
Probe adaptor rod material | Stainless steel 1.4301 |
Probe adaptor assembly material | Stainless steel 1.4305 |
Configurable adaptor length for probe | Yes |
Temperature range | −40 to 212 °F | −40 to 100 °C |
Protection rating | IP65 |
Hazardous area certifications | Ex e |
The following downloads are available for this product:
- PA151 probe mounting adaptor data sheet
- PTB 01 ATEX 1061 U Ex certificate (Europe) – PA151
- IECEx PTB 08.0003U Ex certificate (International) – PA151
- EAЭC RU C-CH.AД07.B.03022/21 Ex certificate (Russian Federation) – PA151
- 800-151-000V111 product drawing [ LOGIN required ]
- Proximity measurement chains using TQ9xx proximity sensors installation manual [ LOGIN required ]
