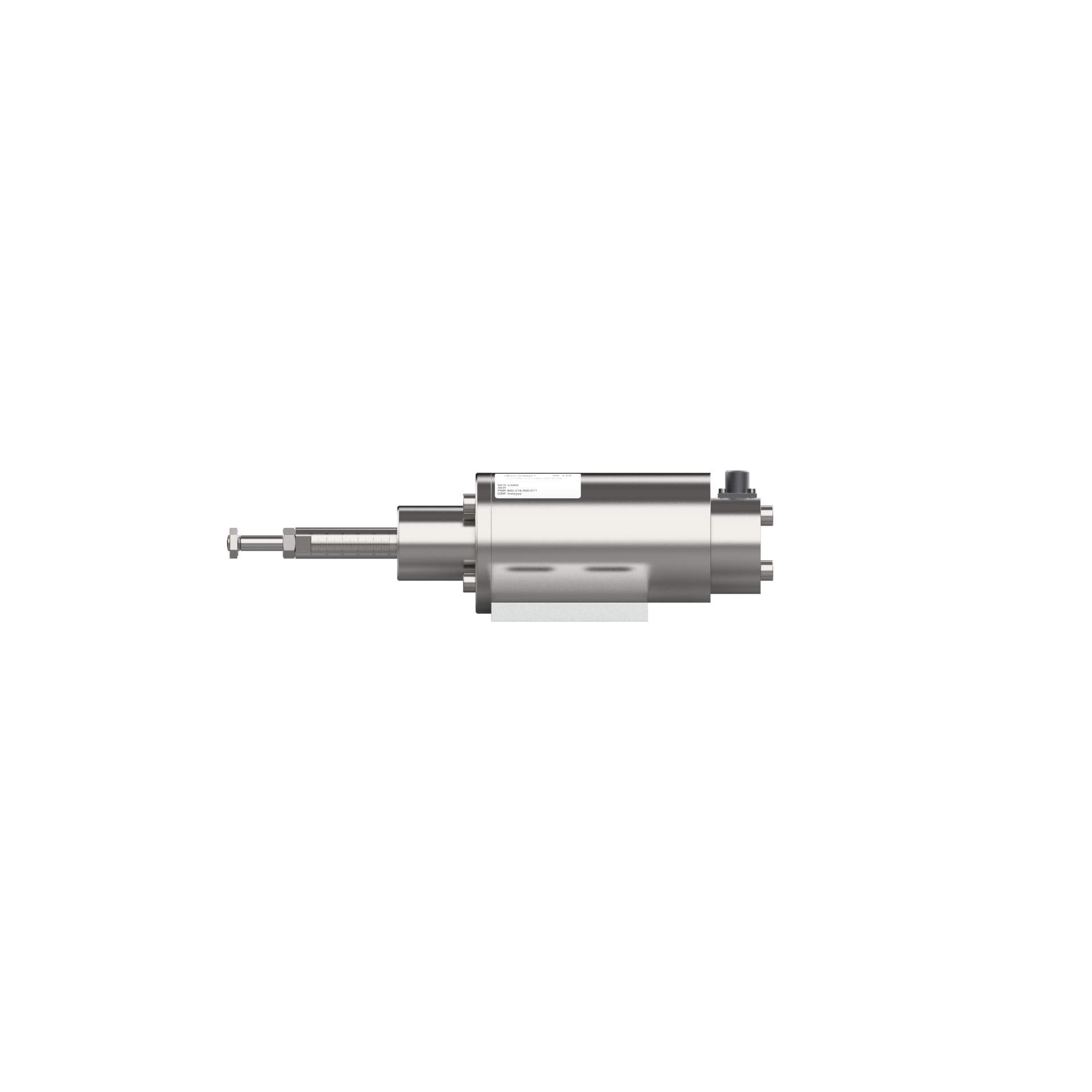

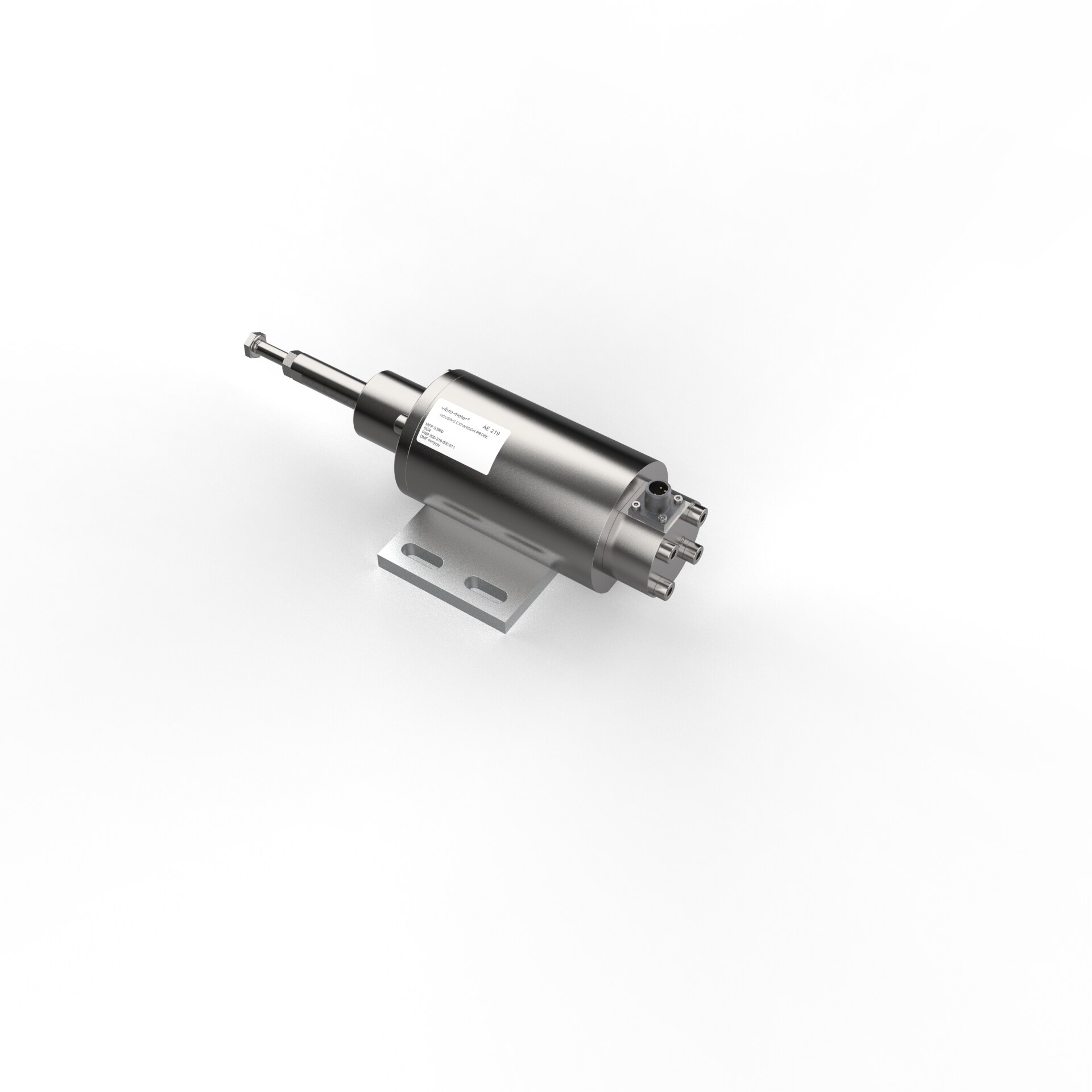

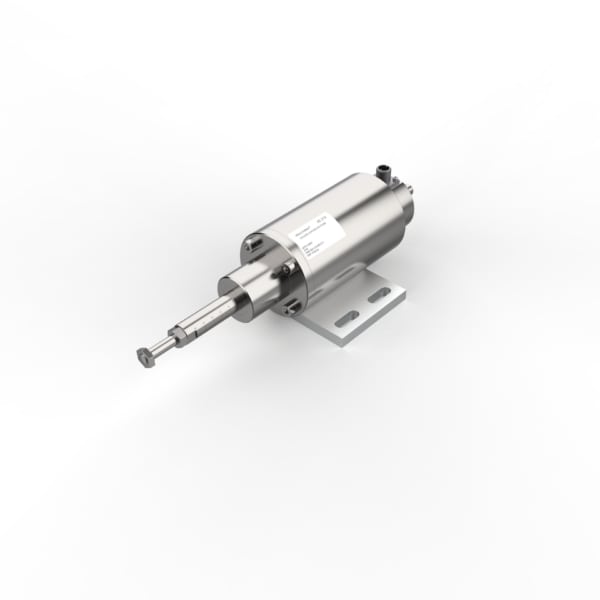

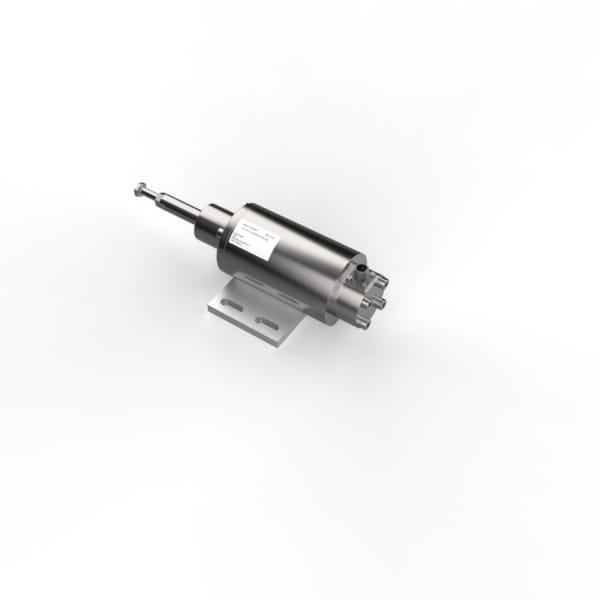

AE219 housing expansion probe
- Designed for the long-term measurement of housing expansion in extreme environments, such as gas turbines and steam turbines
- 50 or 100 mm measurement range
- 0 to 100 °C (32 to 212 °F) operating temperature, IP55 protection rating
- Integrated electronics
- Current loop output (4 to 20 mA) for signal transmission over long distances
Description
High-quality, high-reliability housing expansion probe. For use in harsh industrial environments.
Features
- Designed for the long-term measurement of housing expansion in extreme environments, such as gas turbines and steam turbines
- 50 or 100 mm measurement range
- 0 to 100 °C (32 to 212 °F) operating temperature, IP55 protection rating
- Integrated electronics
- Current loop output (4 to 20 mA) for signal transmission over long distances
Additional information
| Output type | Current loop (4 to 20 mA) |
|---|---|
| Linear measurement range | 2.0 or 3.9 in | 50 or 100 mm |
| Output | 4 to 20 mA |
| Operating temperature range | 32 to 212 °F | 0 to 100 °C |
| Frequency response | 0 to 5 Hz (mechanical) |
| Accuracy | <1% of full scale |
| Configurable orientation | Variable position mounting bracket and integral position scale engraved/marked on probe rod (local readout) |
| Protection rating | IP55 |
