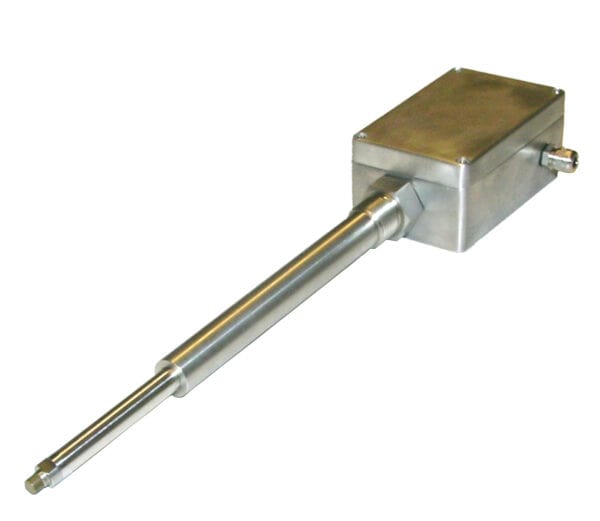

PA152 probe mounting adaptor
- Probe housing and probe adaptor rod to support the external mounting of a TQ912 proximity sensor
- Sealed die-cast aluminium housing and stainless steel adaptor rod
- Easier probe installation and gap adjustment with adaptor rod lengths from 50 to 800 mm (mounting position adjustable to ±10 mm)
- −40 to 200 °C temperature, IP65 protection rating
Description
Probe housing and probe adaptor rod.
High-quality, high-reliability probe housing and probe adaptor rod to support the external mounting of a TQ912 proximity sensor.
The PA152 is designed and built for long-term use in harsh environments characterised by high temperatures.
Features
- Probe housing and probe adaptor rod to support the external mounting of a TQ912 proximity sensor
- Sealed die-cast aluminium housing and stainless steel adaptor rod
- Easier probe installation and gap adjustment with adaptor rod lengths from 50 to 800 mm (mounting position adjustable to ±10 mm)
- −40 to 200 °C temperature, IP65 protection rating
Additional information
| Type of probe mounting adaptor | Probe housing and probe adaptor rod |
|---|---|
| Mounting position adjustment | ±0.39 in | ±10 mm |
| Probe housing material | Aluminium alloy |
| Probe housing gasket material | Silicone |
| Probe adaptor rod material | Stainless steel 1.4301 |
| Probe adaptor assembly material | Stainless steel 1.4305 |
| Configurable adaptor length for probe | Yes |
| Temperature range | −40 to 392 °F | −40 to 200 °C |
| Protection rating | IP65 |
