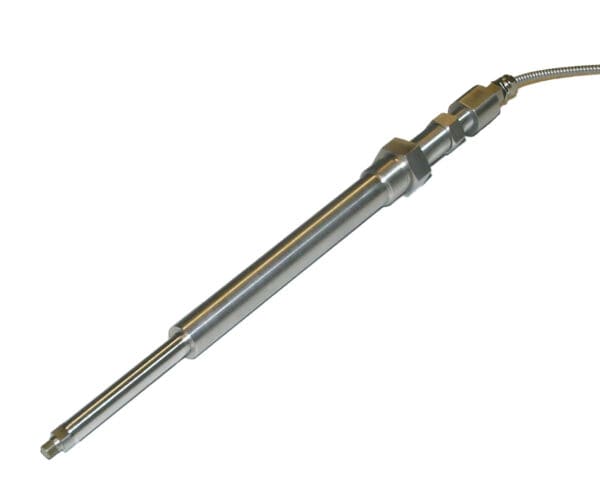

PA153 probe mounting adaptor

  • Probe adaptor rod to support the external mounting of a TQ412 proximity sensor
  • Stainless steel adaptor rod
  • Easier probe installation and gap adjustment with adaptor rod lengths from 50 to 800 mm (mounting position adjustable to ±10 mm)
  • −40 to 200 °C temperature, IP65 protection rating
Compare

Description

Probe adaptor rod.

High-quality, high-reliability probe adaptor rod to support the external mounting of a TQ412 proximity sensor.

The PA153 is designed and built for long-term use in harsh environments characterised by high temperatures.

Features

  • Probe adaptor rod to support the external mounting of a TQ412 proximity sensor
  • Stainless steel adaptor rod
  • Easier probe installation and gap adjustment with adaptor rod lengths from 50 to 800 mm (mounting position adjustable to ±10 mm)
  • −40 to 200 °C temperature, IP65 protection rating

Additional information

Type of probe mounting adaptor

Probe adaptor rod

Mounting position adjustment

±0.39 in | ±10 mm

Probe adaptor rod material

Stainless steel 1.4301

Probe adaptor assembly material

Stainless steel 1.4305

Configurable adaptor length for probe

No

Temperature range

−40 to 392 °F | −40 to 200 °C

Protection rating

IP65
